Downloading & Processing M300 Log Files

Pilot 2

Open up the DJI Pilot 2 app on the controller

Navigate to the controllers File Manager:

First, click on the 4 square icon in the bottom right

⁠


⁠

⁠

Next, click on File Manager

⁠


⁠

⁠

Then, navigate to Internal Storage and Click Internal Storage

⁠


⁠

⁠

Within Internal Storage follow the path below to access the flight records:

DJI → com.dji.industry.pilot → FlightRecord

The formatting for the flight record should be: DJIFlightRecord_YYYY-MM-DD_[HH-MM-SS].txt

Plug in a storage device (Flash Drive or microSD Card) to the controller and copy the desired .txt files to the storage device

Log Viewer

Once you have downloaded the flight record file, go to

Flight Log Processing

⁠

to upload your .txt file.

To upload your flight log, navigate to the heading “Upload Your Flight Log”

Confirm you are not a robot

Then select the .txt file that was downloaded from the controller and click “Upload Log”

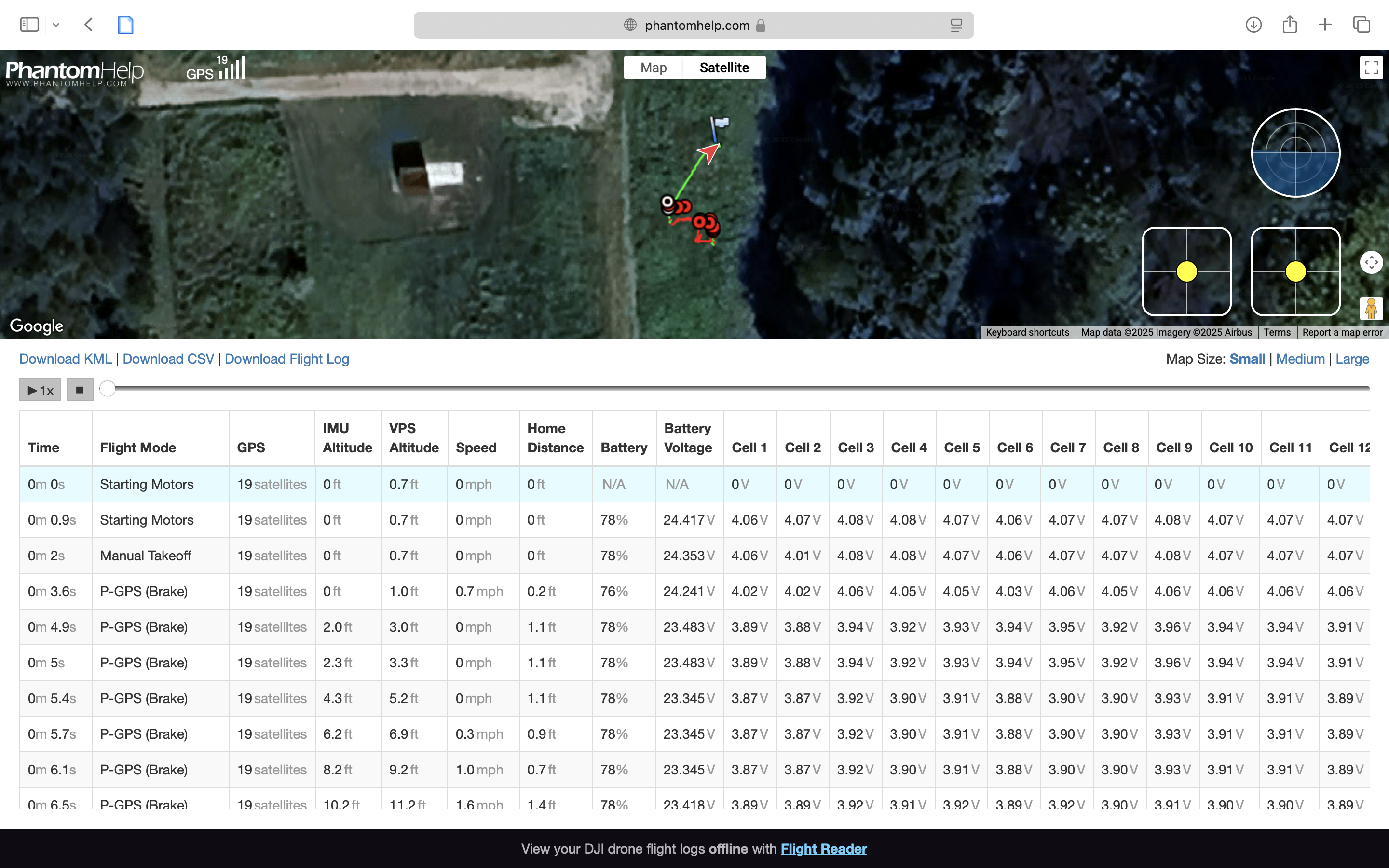

Once it has processed the flight record, it should bring you to a page where you can view both the data form your flight and your flight path. The page should look similar to:

⁠


⁠

⁠

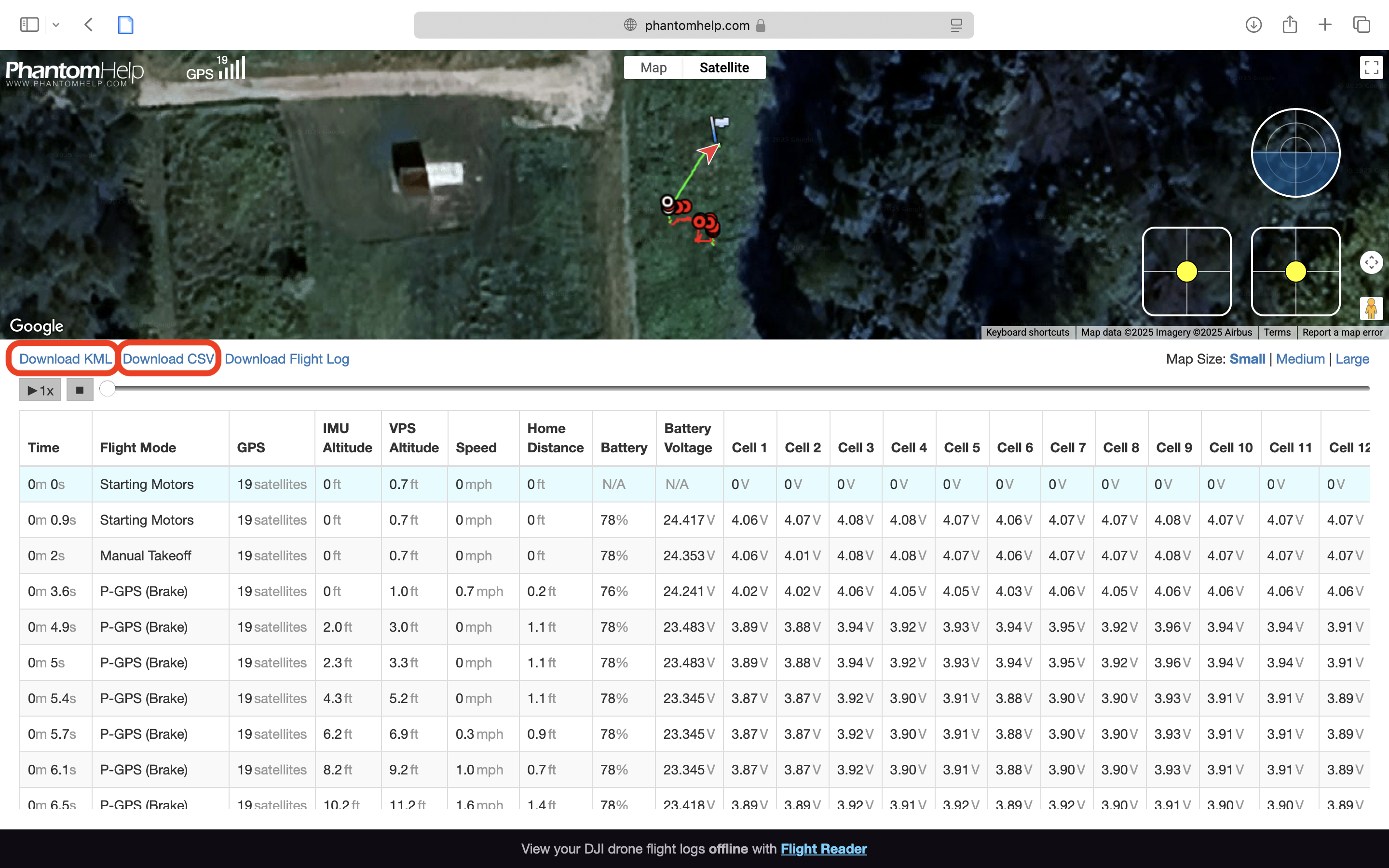

On this page, download the KML & CSV files

⁠


⁠

⁠

NOTE: You do not need to download the Flight Log because that is the same thing as the .txt file you uploaded.

Uploading to Shelf Form

In the event of a crash, this process will need to be completed and the 3 files (KML, CSV, TXT) will need to be uploaded to the “Log Files” section on the Crash & Maintenance Form

⁠


⁠

⁠
