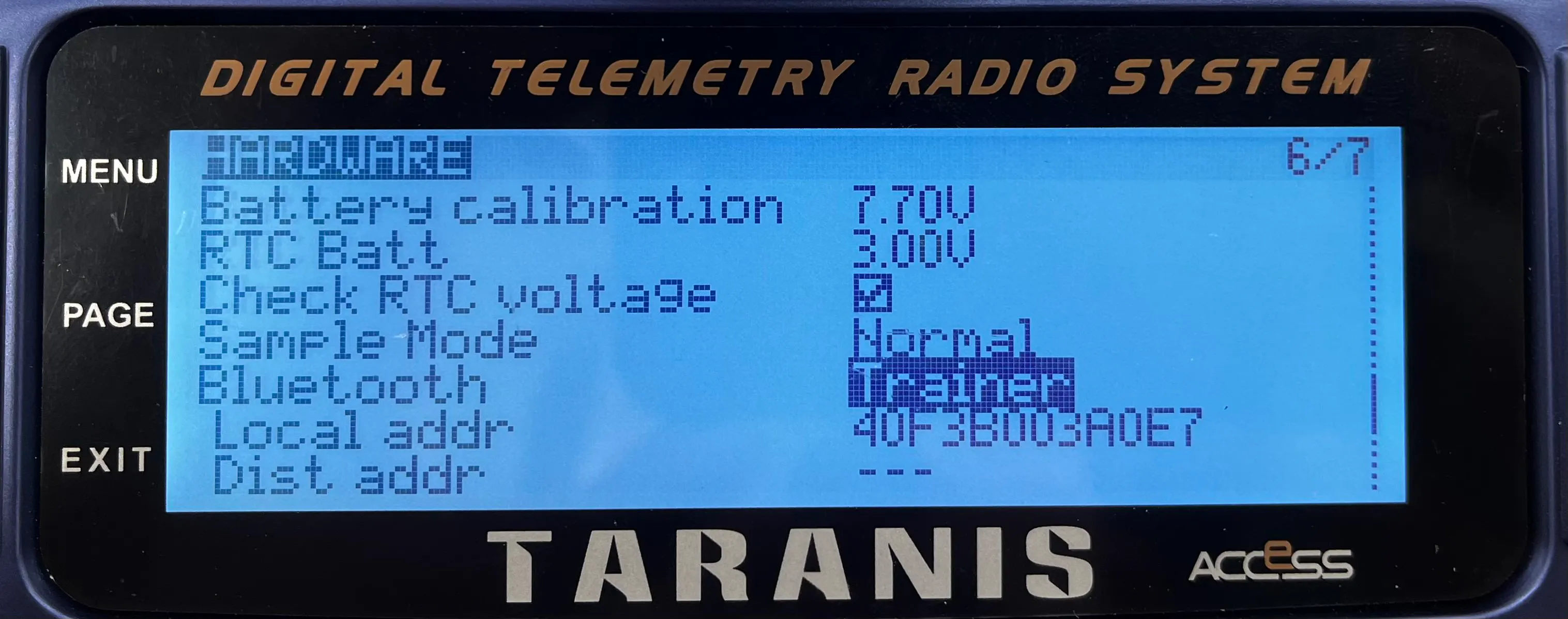

Open the trainer model on the controllerLong hold menu and then click page until you get to the Hardware Screen 6/7Scroll to the Local Addr and remember this address for later

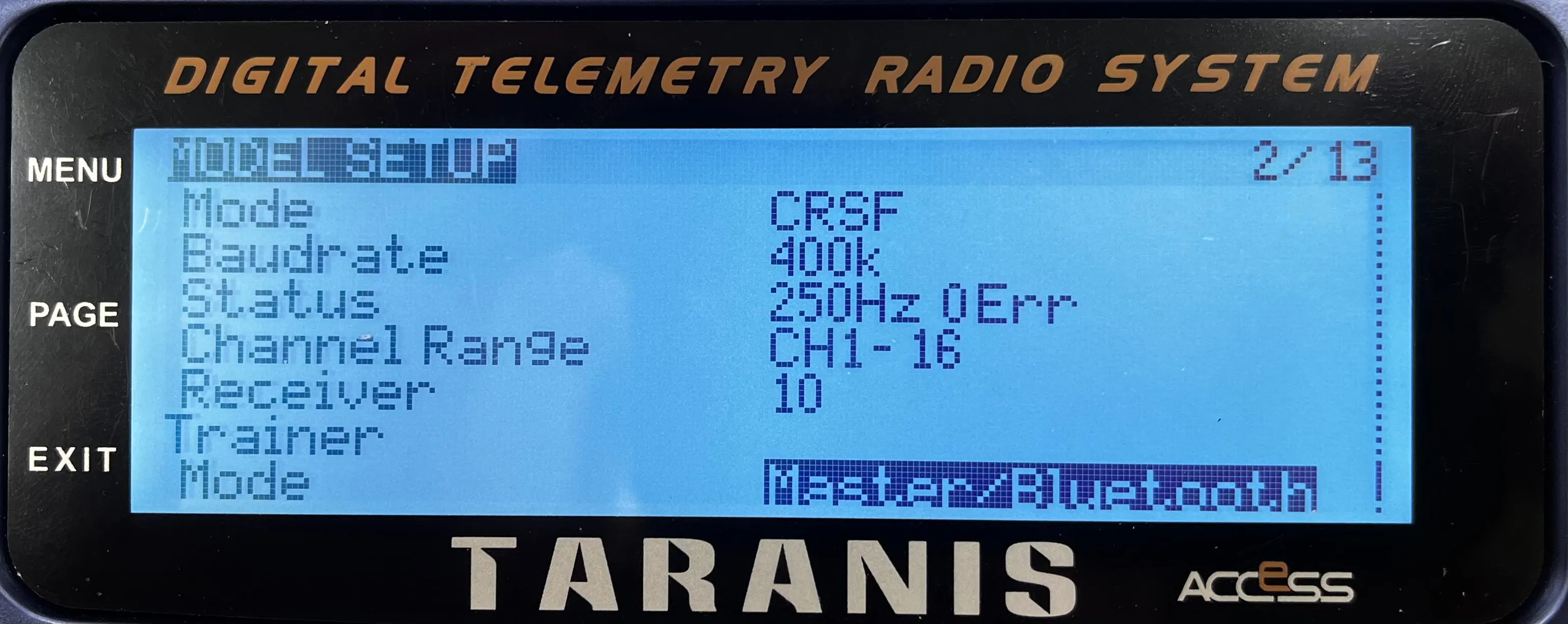

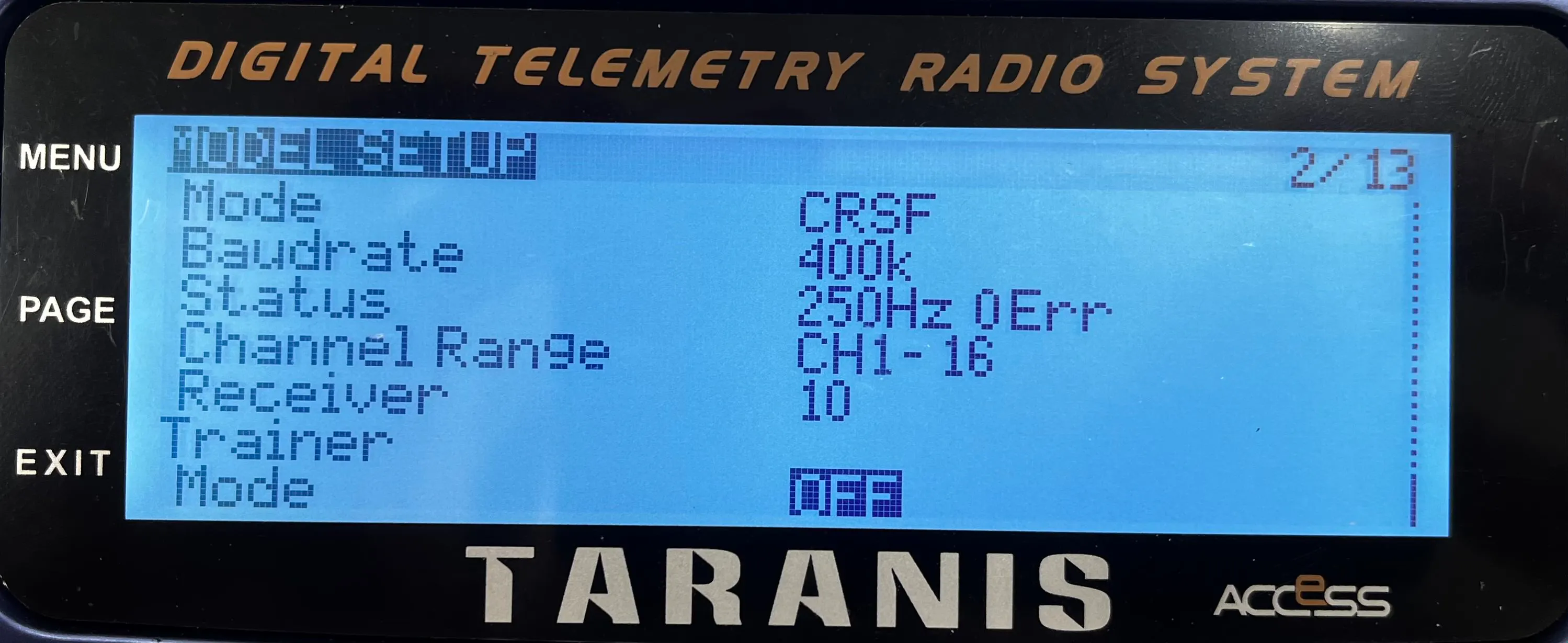

Load the aircraft model you would like to useQuick press menu page to go to the model setup page. At the bottom of this page there is a mode which should be selected as Master/Bluetooth

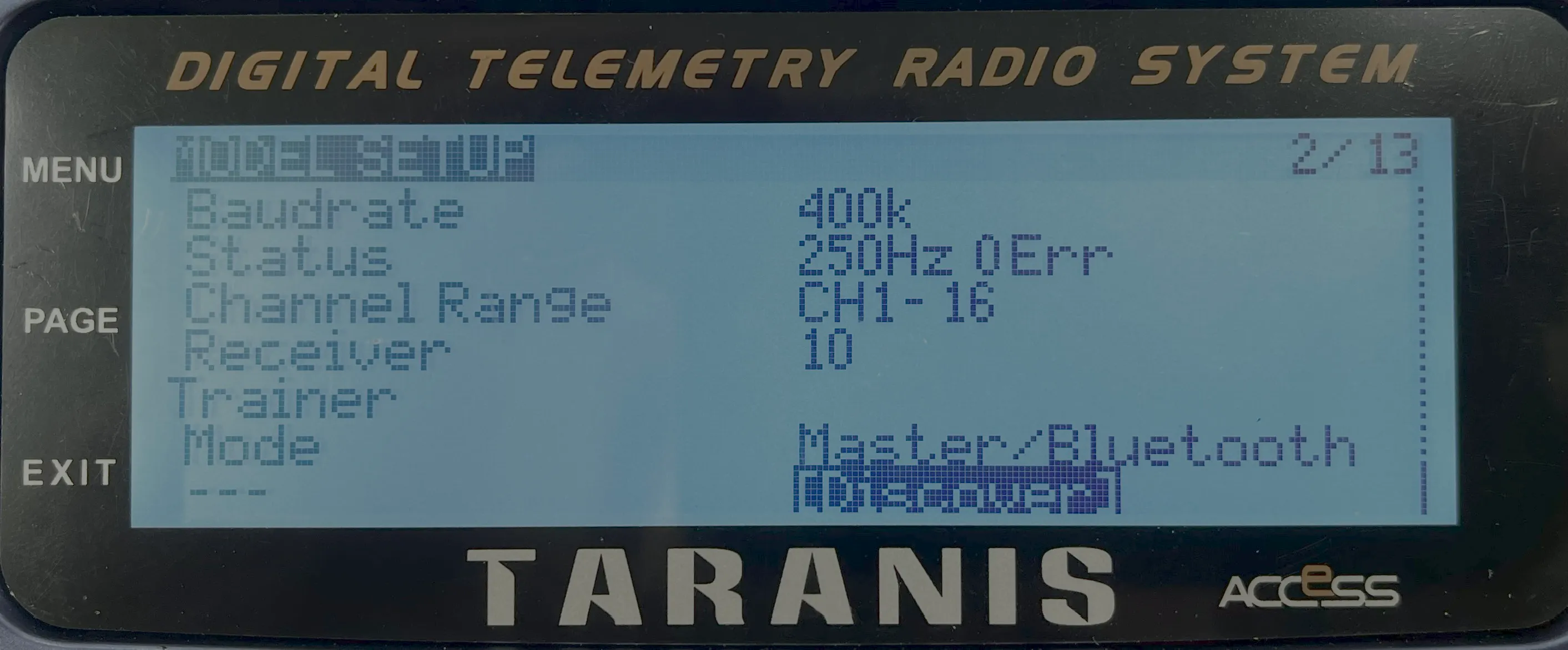

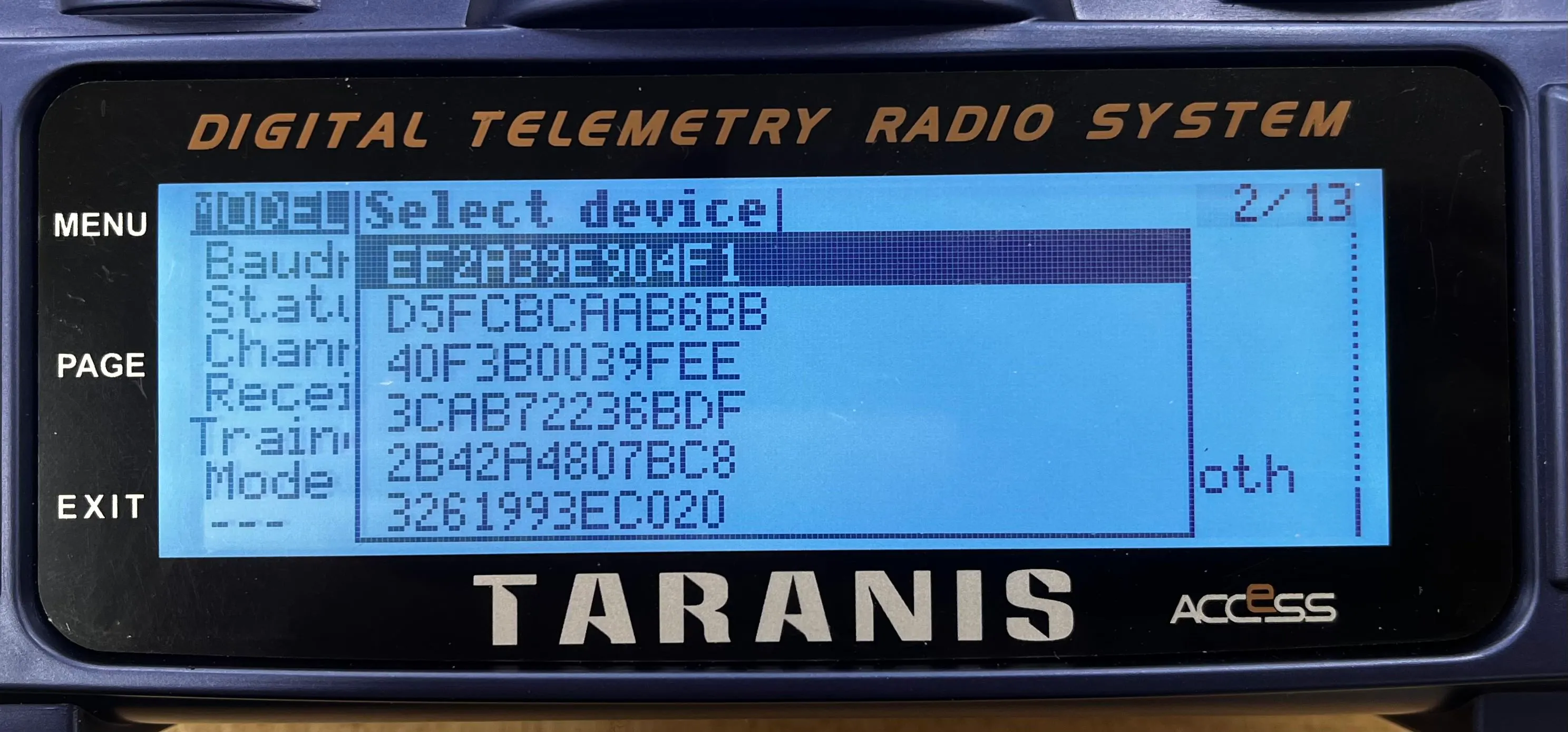

There is a discover button underneath that you will press.A screen loads with the Bluetooth Addresses of near by devices. Select the device that matches the Local Addr on the student controller. If too many Bluetooth devices are powered on you may need to turn off Bluetooth to be able to display your controllers address.

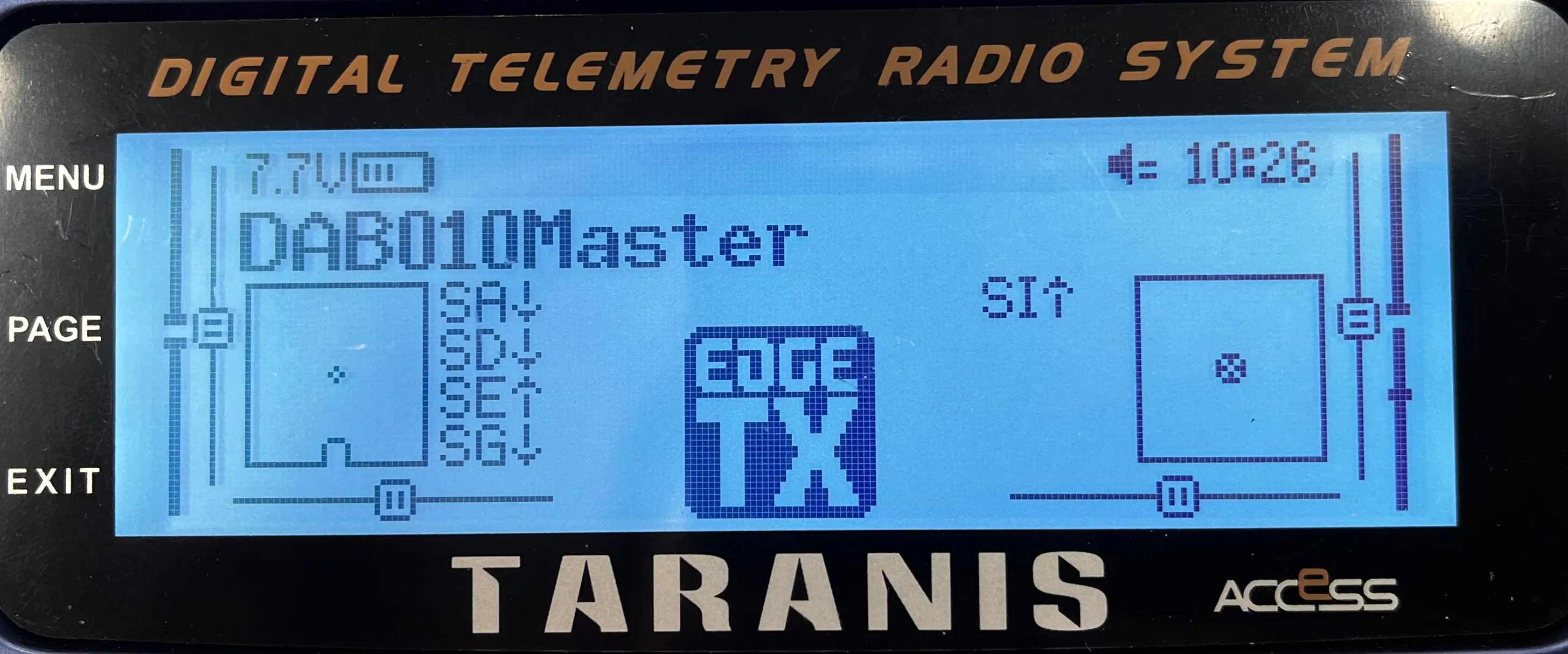

Return both devices to the home screen and check connection to aircraft
Buddy Box Setup
Buddy boxing is the practice of linking two radios together for the purpose of instructing students how to fly UAS, typically fixed wing.
Student
Instructor
Setup
