Power on the sensor by either:Using the AC power adapter; orInstalling the sensor onto the aircraft via the Skyport and turning on the aircraftThe wait for the LEDs on the sensor to do either of the following:Connect the sensor to the computer using a USB cable.**Use the USB-C port on the side of the sensor not the USB-C port on the top of the gimbal.*Use the USB-C Cable provided with the 6X for the best and most reliable performaceA home page should appear similar to:
If the webpage can't be connected to after a few minutes try the following:Verify the sensor has had around a minute to boot. Turn off/disconnect any Wi-Fi or Ethernet connections that have internet access.If the 6X is being powered with the AC power adapter, the No Gimbal Communication application will appear. This is expected as the gimbal itself is now powered.

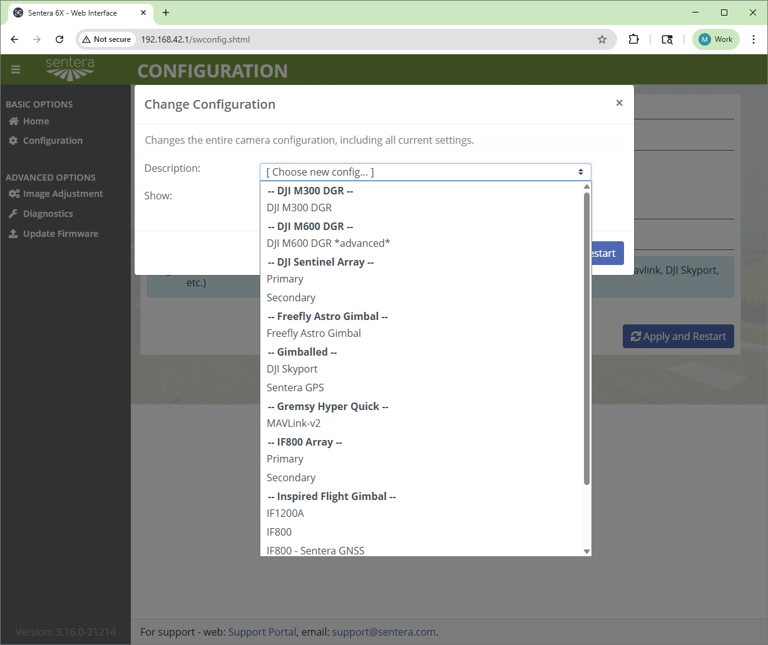

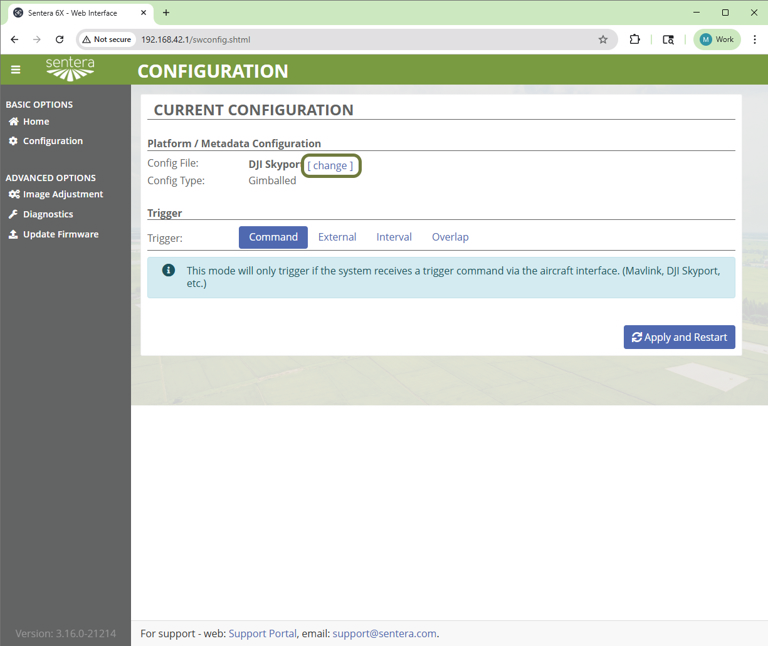

If the Config File is not already set to DJI Skyport this will need to be changed. To do so, click the [change] button beside the currently selected config fileEnsure “All platform configurations” are selected in the Show options and then navigate to the correct config file (Gimballed → DJI Skyport)Once selected, click apply & restart. The sensor will perform a system restart to install the config fileVerify the correct configuration is showing
Sentera 6X Thermal ProGPS & Light SensorCalibrated Reflectance Panel (CRP)Mounting HardwareGPS & Light Sensor Mount4 x M3x5mm Phillips Head ScrewsZipties (for cable securement)Flush cutters (for ZiptiesUSB C to C Cable2.5mm Phillips Head Screwdriver
Setup DJI M300Attach Sentera 6X Thermal Pro to the Skyport attachment on the DJI M300Mount the GPS/ Light sensor to the top of the M300 (Ensure the orientation of the GPS/Light sensor is installed as shown below)Connect the GPS/Light Sensor to the USB C port on the Skyport of the Sentera 6X Once both the Sentera 6X thermal pro sensor & GPS/Light Sensor are installed the completed instillation should look like this:Turn on the aircraft. Once the 6X LEDs have turned green, move onto capturing the calibrated reflectance panel.
Before actually flying, the first step is to take a picture of the calibrated reflectance panel (CRP). This is done by holding the sensor/ aircraft and pressing the button on the GPS/Light Sensor.When you are capturing the image of the CRP best practice include:Hold the sensor/ aircraft 1 meter (or about waist height) over the CRPAvoid shadowing the panelKeep the sun at your sideThere should be audible beeps form the 6X and the LEDs will flash in this sequence: blinking green, then white, then Turing solid green. If you hear those that means the images were captured.Once the images are captured, you are ready to fly the mission.
Power on the sensor by using the AC adapter Connect the sendto to the computer using the USB-C cable Ensure this is plugged into the side of the sensor and NOT the USB-C on the top of the gimbalOpen a File Browser (PC)/ Finder (Mac) PC: In File Browser, Navigate to internal storage by typing \\192.168.42.1 into the address bar of the file browser and pressing enterWindows will display a network credits pop-up. The username is sentera and there is no password. Press OKFrom there to navigate to the data select Data → Snapshots → Your desired folderCopy all of the data Mac: In Finder, navigate to internal storage by first going to Network in Finder. Then there should be a device called SENTERA-6X, select it. From there to navigate to the data select Data → Snapshots → Your desired folderCopy all of the data.
Sentera 6X Thermal Pro Documentation
Sensor Information
Camera:
Sentera 6X Thermal Pro
Serial Number:
036
Part Number:
21216-03
There are no rows in this table
Connecting to Sentera 6X Thermal Pro via Webpage
You have the ability to connect to the Sentera 6X Thermal Pro sensor via a webpage. These are the steps to do so...
Power Method
LED Behavior
AC Power Adapter
Flashing Red
Drone Power
Solid Green (requires GPS Fix)
Solid Red (After 2 minutes w/o GPS)
There are no rows in this table
Configuration of the Sentera 6X Thermal Pro
For the Sentera 6X Thermal Pro, all configurations should be preset already but in the event that the settings need to be reconfigured there is one setting that needs to be set from the defaults. Below is how to change the Config File to DJI Skyport:
Configuration File
Work Flow
This is the start to finish workflow for using the Sentera 6X Thermal Pro with the DJI M300 for a mapping mission
Equipment List
Mounting Rededge-P Dual System

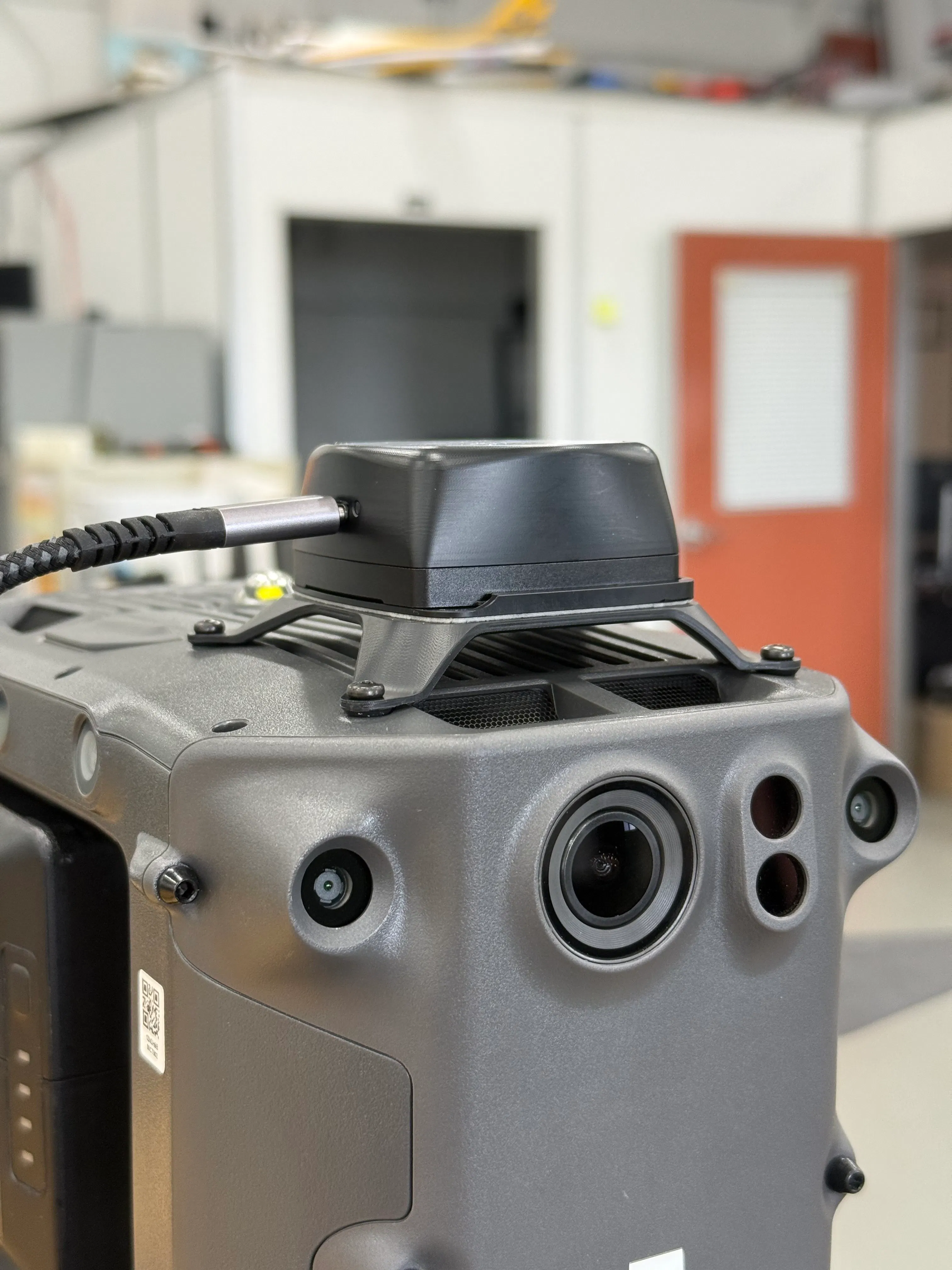

GPS/Light Sensor mounted on top of the DJI M300 with USB-C port facing the starboard aircraft

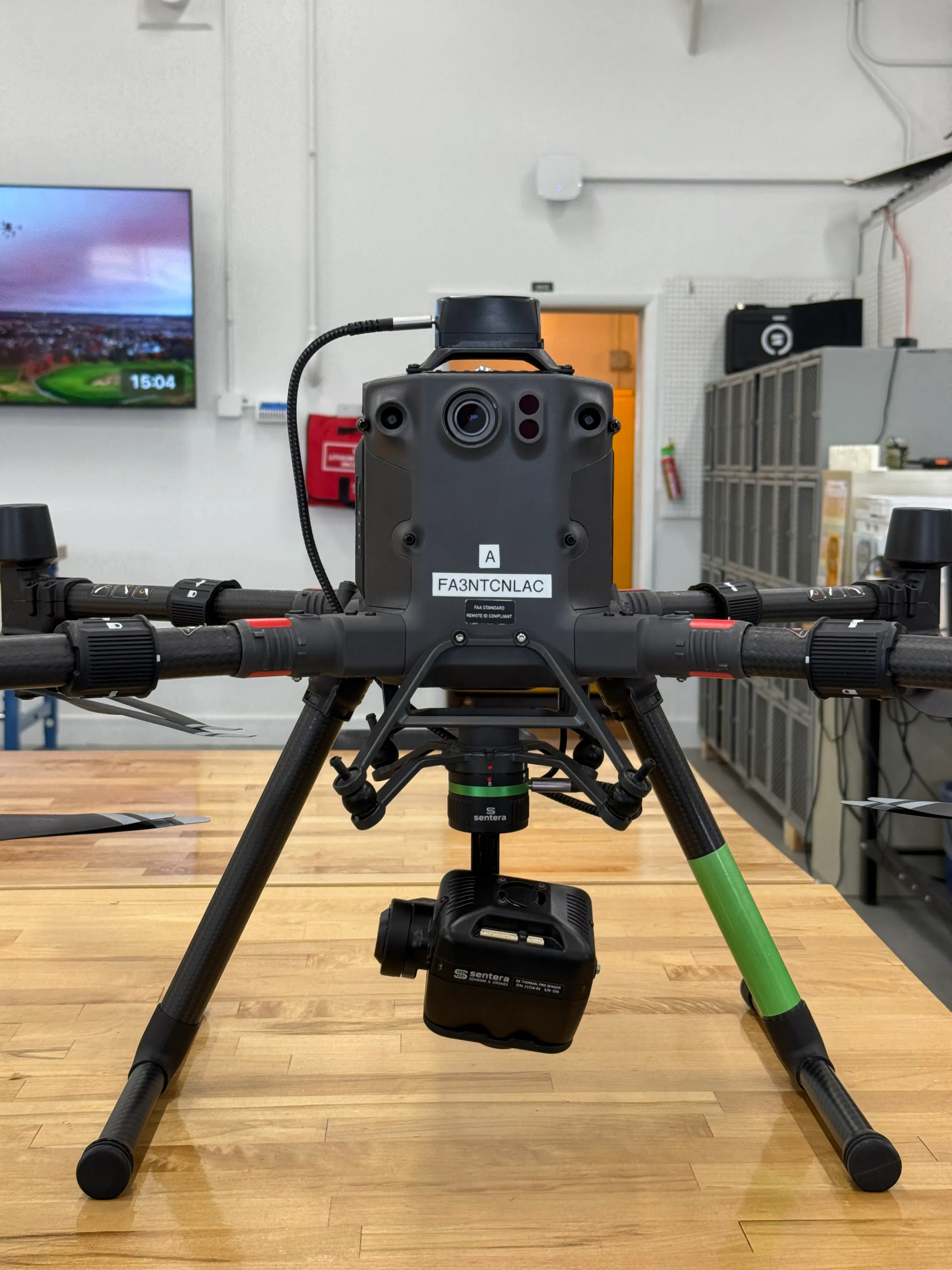

Fully assembled Sentera 6X Thermal Pro + GPS/Light Sensor
Flying the Mission
When mission planning, ensure you are following the as prescribed below and if the Sentera 6X is not an added sensor in DJI Pilot 2 to refer to
Data Offload Process
To offload the data you will need to connect to the Sentera 6X and copy the data off of the internal SSD. Imagery is NOT store on the micro SD card. The micro SD card holds the configuration settings. Here are the steps to offload the data:
Flight Settings
When creating a flight plan it's important to follow the recommended flight setting from Sentera to properly capture imagery from the Sentera 6X. Below are recommended settings/ conditions when creating a flight plan:
Orthomosaic
There are no rows in this table
Capture Performance
The Camera Parameters for the Sentera 6X has the capture rate at 1 second intervals. With this, we also need to consider the Capture Rate vs Altitude with Constant Speed & Capture Rate vs Flight Speed with Constant altitude graphs by Sentera when making our flight plans. Below are links to both graphs. Take a look at them before finalizing a flight plan
Environmental Considerations
Time of Day: Flying mid-day when the sun is highest (Solar Noon) is optimal to reduce shadowing effects
Cloud Cover: Flying in uniform lighting conditions is optimal for the 6X. Either mostly clear or completely overcast
Precipitation: Flying in foggy, rainy, or snowy conditions is not advised.
Camera Parameters for DJI Pilot 2
When using a DJI Pilot 2, you may need to create a "custom camera" to enable the app to properly calculate flight paths.
Camera Name
Sentera 6X
Image Width (px)
2048
Image Height (px)
1536
Sensor Width (mm)
7.0656
Sensor Height (mm)
5.2992
Focal Length (mm)
8
35mm Equivalent
No
Min. Shutter Interval*
1
There are no rows in this table
Reflectance Values
These values are also located on the back of the Calibrated Reflectance Panel
Blue (475nm)
.1116
Green (550nm)
.1099
Red (670nm)
.1079
Red Edge (715nm)
.1071
Near Infrared (840nm)
.1050
There are no rows in this table
